Google Calendar and Google Docs Widget

  • Updated

The Google Calendar and Google Docs Widgets are two of the built-in widgets available to all notebook members with edit access to the notebook. The widgets allow you to embed and view your Google Calendar and Google Docs directly inside your LabArchives Notebooks. With appropriate permissions, Google Docs can be edited directly within the LabArchives notebook.

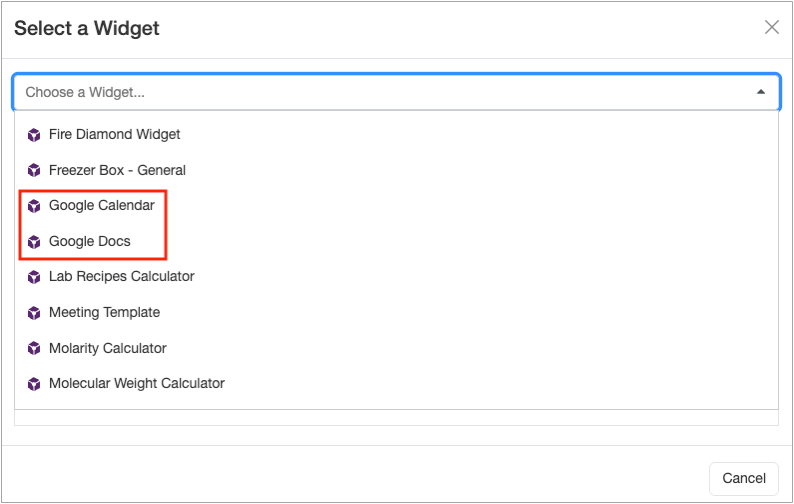

From the Add New Entry menu, select Widget, and then choose Google Calendar or Google Docs from the menu. Click Google Calendar or Google Docs to add the Widget to your LabArchives page.

Google Calendar

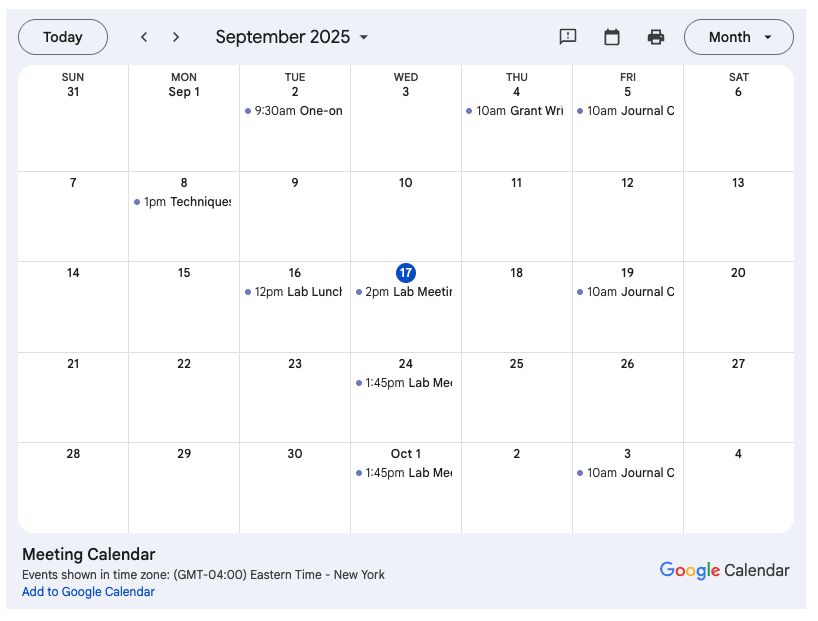

After selecting the Google Calendar Widget from the Widget menu, it will be inserted onto the page in your LabArchives notebook. From the Google Calendar Entry Editor, paste the Google Calendar iFrame Embed code to make the calendar visible within your notebook. The embedded calendar is only visible to people you've shared it with via the Google Calendar settings.

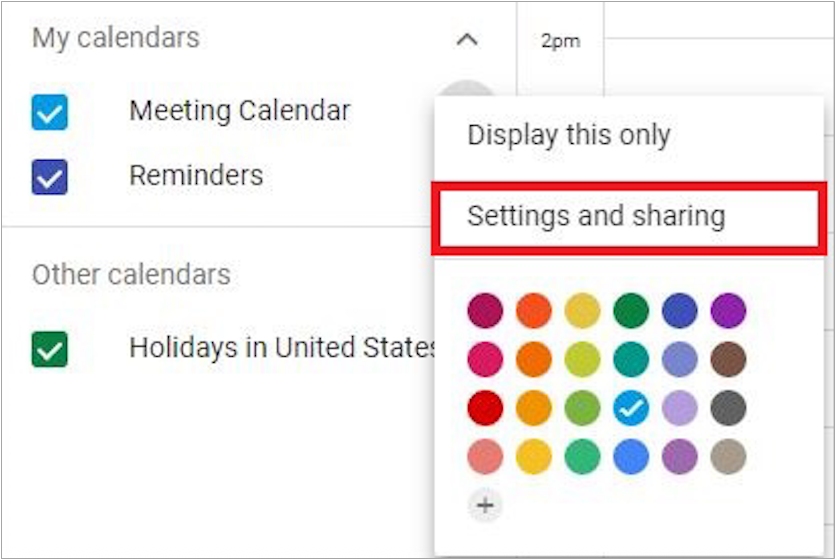

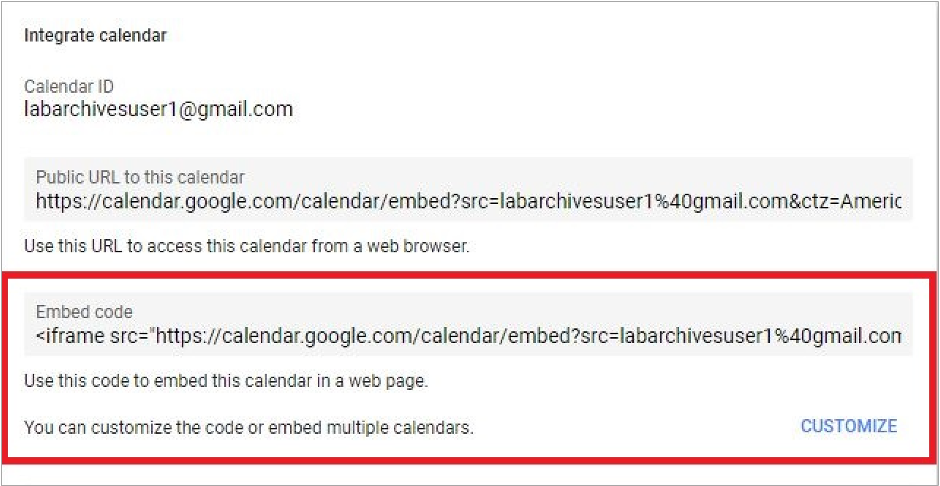

To retrieve the iFrame Embed Code, open your Google Calendar. On the left side of the window, hover over the calendar name, click the triple-dot menu and select Settings and Sharing. From this page, scroll down to the Integrate Calendar section and copy the Embed Code and paste it into the Google Calendar Entry Editor. Click Save to page.


For additional help and tips on sharing Google calendars in other websites, click here.

Tip: Prior to copying the Embed Code into the Google Calendar Entry Editor, click Customize below the Embed Code to adjust the size, color, formatting and to show multiple calendars at once. Copy the newly generated Embed Code to place in the Google Calendar Entry Editor.
Google Docs

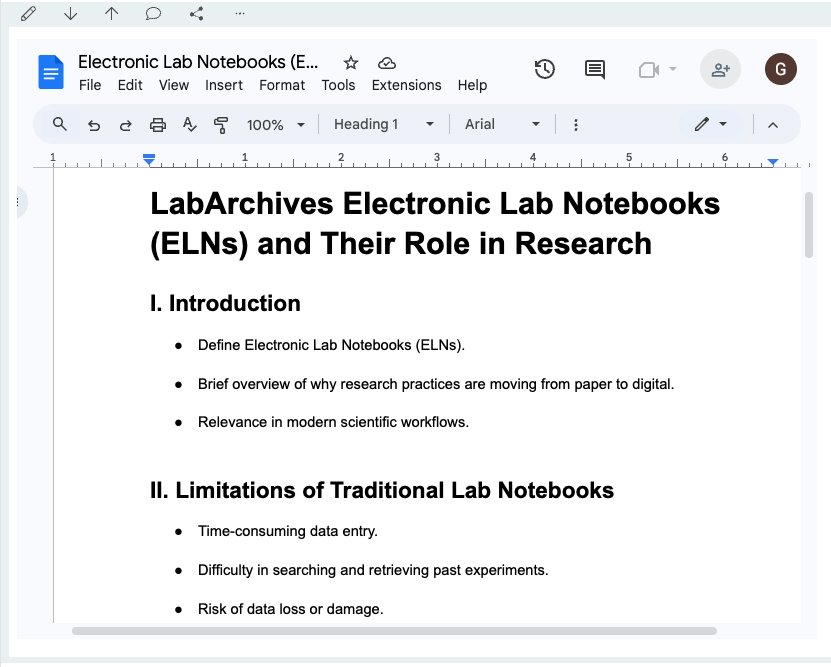

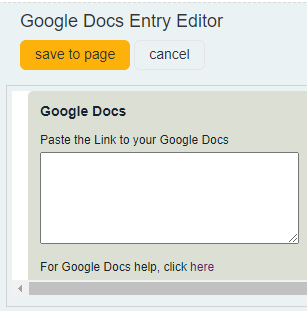

After selecting the Google Docs Widget from the Widget menu, it will be inserted onto the page in your LabArchives notebook. From the Google Docs Entry Editor, paste the Google Docs Share Link to make the Doc, Sheets, or Slides visible within your notebook. The embedded document is only visible to people you've shared it with via the Google Docs settings.

Access the Google document you would like to embed in LabArchives and select Share and Copy Link. Copy the link and paste it into the Google Docs Entry Editor. Click Save to page.


 For additional help and tips on sharing Google Docs, click here.

Tip: Google Documents can also be embedded as an iFrame within Rich Text entries. Through the Rich Text Entry toolbar select the insert iFrame button and copy the Google Doc Share Link. Enter the dimensions with a suggestion to start with Width: 800 and Height: 600. The size can be edited later by clicking the on the iFrame and the pencil icon.
