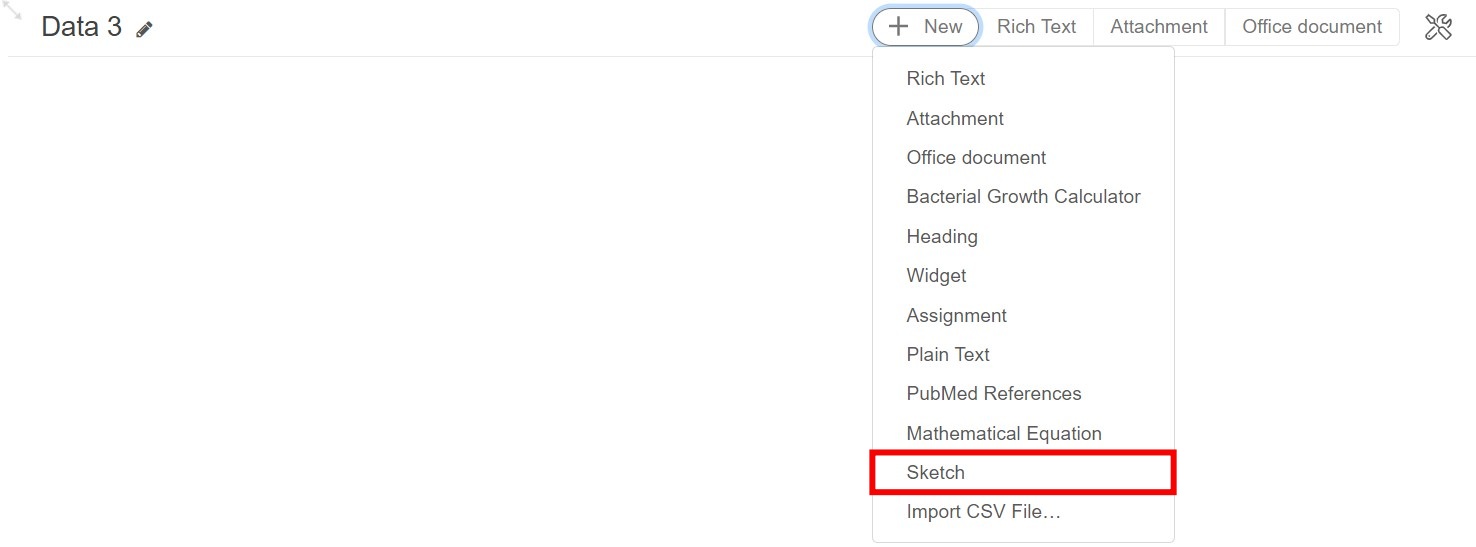

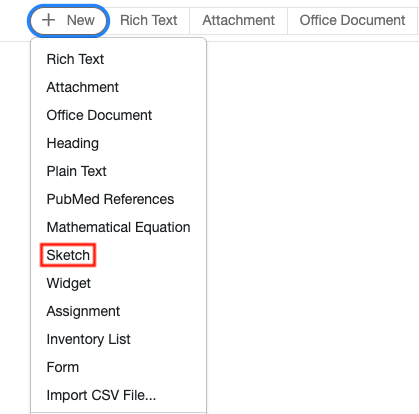

The Sketch tool is an easy way to add a sketch to your Notebook. To add a sketch to your notebook, select “Sketch” on the Add Entry toolbar.

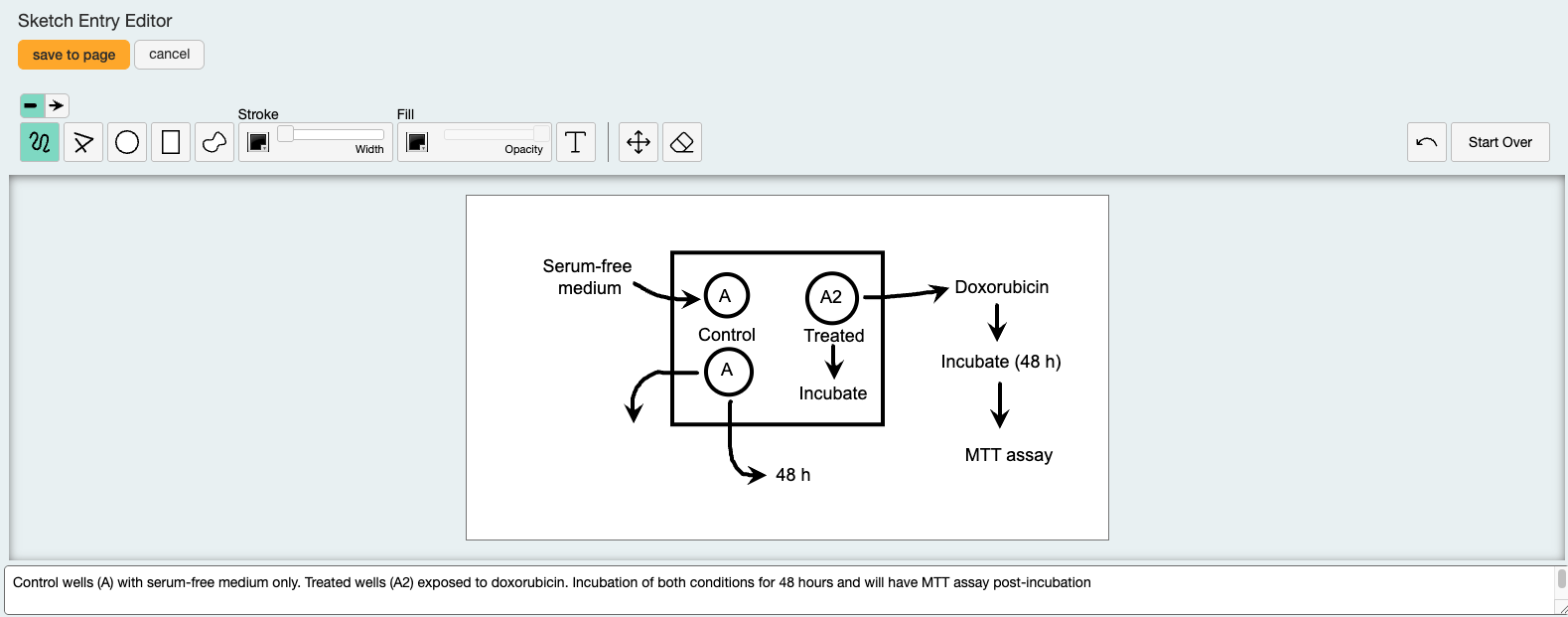

After that, the following window will appear. When finished click “Save to Page”
This tool allows the user to draw freehand on the image.
This tool is used to create straight lines on the image.
This tool is used to transform your straight or freehand lines into arrows
This tool is used to create a circle. It can be filled in or kept empty using the fill/opacity tool.
This tool is used to create squares and rectangles. It can be filled in or kept empty using the fill/opacity tool.
The freehand shape tool is used to create freehand shapes that can be filled in or kept empty using the fill/opacity tool.
The arrow icon is used to move any items that have been added onto the image.
The eraser tool is used to remove any items that have been added to the image.
The text tool is used to add text to the workspace.
The clear sketch tool removes everything on the sketchpad.
The undo tool removes the most recent edit.
The stroke color/width will affect the color and width of a line. The fill color/opacity will affect what color fills a shape and how clear it will appear.
